• 10380012202

10380012202

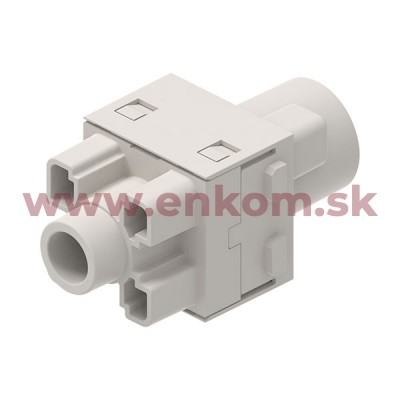

Názov produktu: I2M200-001FR-CF

Dostupnosť: Dodací termín na vyžiadanie
KS Cena
1 6.07€ / 7.28€ s DPH
KS

Dokumentácia

Icon pdf

Technické informácie

Series IM
Size M2
Nr. Module Spaces 2
Nr. Contacts 1
Gender Female
Options Finger Safe IP20
Connection 1 Type Crimp
Rated Current(IEC) 200A
Rated Voltage(IEC) 1000V
Rated Impulse Voltage 8kV
Conductor Cross-section 16-70mm²
Contact Resistance <0.3mΩ
Insulation Stripping Length Please refer to crimp contact data
Overvoltage Category III
Pollution Degree 3
Material(insert) Polycarbonate (PC)
Colour(insert) Pebble Grey (RAL 7032)
Material Flammability Class Acc. To UL 94 V-0
Limiting temperature -40…+125°C
Insulation resistance >1010
Insulation Material Group IIIa
Mating Cycles ≥500
Material(Contact) Copper alloy
Surface(Contact) Silver
ContactSeries C200
CE Yes
RoHS Compliant with exemption
China RoHS Compliant with exemption
Country of Origin China
European Customs tariff number 85389099

Popis

Nr. Contacts: 1,Crimp,Rated Current: 200A,Rated Voltage: 1000V,16-70mm_,Finger Safe IP20
