• 10380011220

10380011220

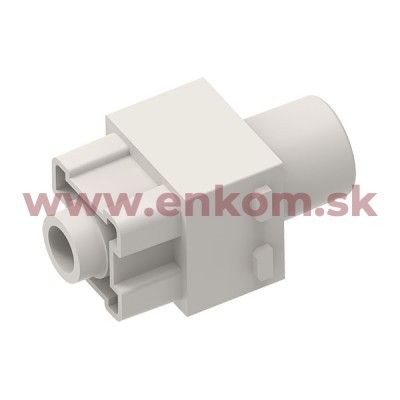

Názov produktu: I2M200-001.1-F

Dostupnosť: Dodací termín na vyžiadanie
KS Cena
1 22.04€ / 26.45€ s DPH
KS

Dokumentácia

Icon pdf

Technické informácie

Series IM
Size M2
Nr. Module Spaces 2
Nr. Contacts 1
Gender Female
Connection 1 Type Axial screw
Rated Current(IEC) 200A
Rated Voltage(IEC) 1000V
Rated Impulse Voltage 8kV
Conductor Cross-section 25-40mm²
Contact Resistance <0.3mΩ
Insulation Stripping Length 16mm
Screw Tightening Torque relative to wire size
Overvoltage Category III
Pollution Degree 3
Material(insert) Polycarbonate (PC)
Colour(insert) Pebble Grey (RAL 7032)
Material Flammability Class Acc. To UL 94 V-0
Limiting temperature -40…+125°C
Insulation resistance >1010
Insulation Material Group IIIa
Mating Cycles ≥500
Material(Contact) Copper alloy
Surface(Contact) Silver
CE Yes
RoHS Compliant with exemption
China RoHS Compliant with exemption
Country of Origin China
European Customs tariff number 85389099

Popis

Module Spaces: 2,Nr. Contacts: 1,Axial screw,Rated Current: 200A,Rated Voltage: 1000V,25-40mm_
