10380011121

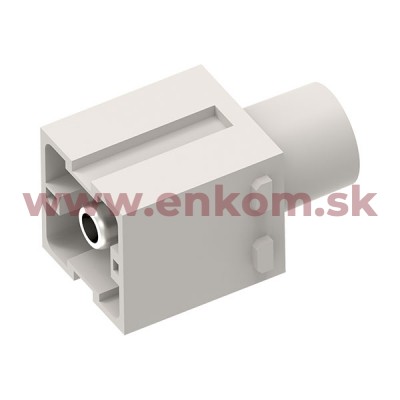

Názov produktu: I2M200-001.2-M
Dostupnosť: Dodací termín na vyžiadanie
| KS | Cena |
|---|---|
| 1 | 18.82€ / 22.58€ s DPH |
KS
Dokumentácia
Technické informácie
| Series | IM |
| Size | M2 |
| Nr. Module Spaces | 2 |
| Nr. Contacts | 1 |
| Gender | Male |
| Connection 1 Type | Axial screw |
| Rated Current(IEC) | 200A |
| Rated Voltage(IEC) | 1000V |
| Rated Impulse Voltage | 8kV |
| Conductor Cross-section | 40-70mm² |
| Contact Resistance | <0.3mΩ |
| Insulation Stripping Length | 16mm |
| Screw Tightening Torque | relative to wire size |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Material(insert) | Polycarbonate (PC) |
| Colour(insert) | Pebble Grey (RAL 7032) |
| Material Flammability Class Acc. To UL 94 | V-0 |
| Limiting temperature | -40…+125°C |
| Insulation resistance | >1010Ω |
| Insulation Material Group | IIIa |
| Mating Cycles | ≥500 |
| Material(Contact) | Copper alloy |
| Surface(Contact) | Silver |
| CE | Yes |
| RoHS | Compliant with exemption |
| China RoHS | Compliant with exemption |
| Country of Origin | China |
| European Customs tariff number | 85389099 |
