10370041110

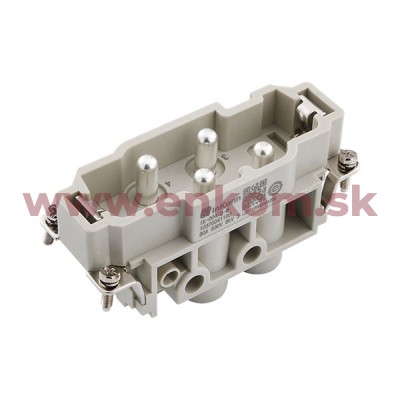

Názov produktu: IK-004/0-M
Dostupnosť: Skladom 5KS
| KS | Cena |
|---|---|
| 1 | 35.08€ / 43.15€ s DPH |
KS
Dokumentácia
Technické informácie
| Series | IK |
| Size | B16 |
| Nr. Contacts | 4/0+PE |
| Gender | Male |
| Connection 1 Type | Screw - withOut Wire Protector |
| Rated Current(IEC) | 80A |
| Rated Voltage(IEC) | 830V |
| Rated Impulse Voltage | 8kV |
| Conductor Cross-section | 1.5-16mm² |
| Contact Resistance | <0.3mΩ |
| Insulation Stripping Length | 14mm |
| Contact Clamping Screw Size | M5 |
| Screw Tightening Torque | relative to wire size |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Material(insert) | Polycarbonate (PC) |
| Colour(insert) | Pebble Grey (RAL 7032) |
| Material Flammability Class Acc. To UL 94 | V-0 |
| Limiting temperature | -40…+125°C |
| Insulation resistance | >1010Ω |
| Insulation Material Group | IIIa |
| Mating Cycles | ≥500 |
| Material(Contact) | Copper alloy |
| Surface(Contact) | Silver |
| CE | Yes |
| RoHS | Compliant with exemption |
| China RoHS | Compliant with exemption |
| Country of Origin | China |
| European Customs tariff number | 85366990 |
