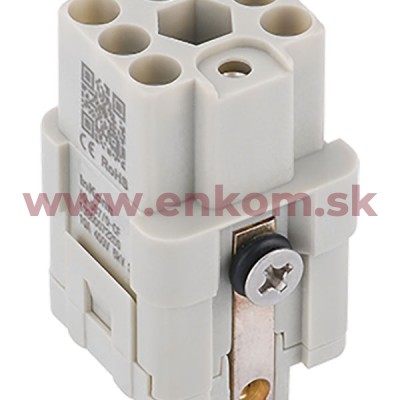

10360072200

Series	IQ
Size	A03
Nr. Contacts	7+PE
Gender	Female
Connection 1 Type	Crimp
Rated Current(IEC)	10A
Rated Voltage(IEC)	400V
Rated Impulse Voltage	6kV
Conductor Cross-section	0.14-2.5mm²
Contact Resistance	<3mΩ
Insulation Stripping Length	Please refer to crimp contact data
Overvoltage Category	III
Pollution Degree	3
Material(insert)	Polycarbonate (PC)
Colour(insert)	Pebble Grey (RAL 7032)
Material Flammability Class Acc. To UL 94	V-0
Limiting temperature	-40…+125°C
Insulation resistance	>1010Ω
Insulation Material Group	IIIa
Mating Cycles	≥500
Material(Contact)	Copper alloy
Surface(Contact)	Silver
ContactSeries	CD
CE	Yes
RoHS	Compliant with exemption
China RoHS	Compliant with exemption
Country of Origin	China
European Customs tariff number	85389099

Veľkosť: A03, Počet kontaktov: 7+PE, Menovitý prúd: 10A, Menovité napätie: 400V,
Krimpovaci konektor pre vodiče: 0.14-2.5mm²
Priemyselná krimpovacia zásuvka.
Krimpovacie kontakty je potrebné objednať zvlášť (kompatibilné kontakty nájdete v sekcií nižšie)
Kompatibilita s výrobcom Harting. (alt. 09120073101)
