10350121100

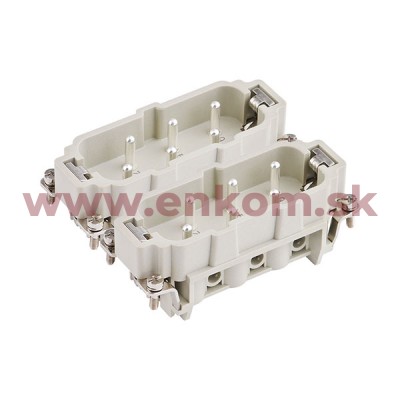

Názov produktu: ISB-012-M(1-6+7-12)
Dostupnosť: Dodací termín na vyžiadanie
| KS | Cena |
|---|---|
| 1 | 43.93€ / 54.03€ s DPH |
KS
Dokumentácia
Technické informácie
| Series | IsB |
| Size | B32 |
| Nr. Contacts | 12+PE |
| Gender | Male |
| Connection 1 Type | Screw - WITH Wire Protector |
| Rated Current(IEC) | 35A |
| Rated Voltage(IEC) | 400/690V |
| Rated Impulse Voltage | 6kV |
| Conductor Cross-section | 1.5-6mm² |
| Contact Resistance | <1mΩ |
| Insulation Stripping Length | 11.5mm |
| Contact Clamping Screw Size | M4 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Material(insert) | Polycarbonate (PC) |
| Colour(insert) | Pebble Grey (RAL 7032) |
| Material Flammability Class Acc. To UL 94 | V-0 |
| Limiting temperature | -40…+125°C |
| Insulation resistance | >1010Ω |
| Insulation Material Group | IIIa |
| Mating Cycles | ≥500 |
| Material(Contact) | Copper alloy |
| Surface(Contact) | Silver |
| CE | Yes |
| RoHS | Compliant with exemption |
| China RoHS | Compliant with exemption |
| Country of Origin | China |
| European Customs tariff number | 85366990 |
