10300101200

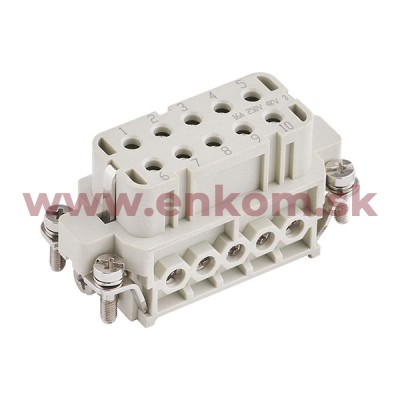

Názov produktu: IA-010-F

Dostupnosť: Skladom 20KS

KS	Cena
1	10.01€ / 12.31€ s DPH

Dokumentácia

Technické informácie

Series	IA
Size	A10
Nr. Contacts	10+PE
Gender	Female
Connection 1 Type	Screw - withOut Wire Protector
Rated Current(IEC)	16A
Rated Voltage(IEC)	250V
Rated Impulse Voltage	4kV
Conductor Cross-section	0.75-2.5mm²
Contact Resistance	<1mΩ
Insulation Stripping Length	7.5mm
Contact Clamping Screw Size	M3
Overvoltage Category	III
Pollution Degree	3
Material(insert)	Polycarbonate (PC)
Colour(insert)	Pebble Grey (RAL 7032)
Material Flammability Class Acc. To UL 94	V-0
Limiting temperature	-40…+125°C
Insulation resistance	>10¹⁰Ω
Insulation Material Group	IIIa
Mating Cycles	≥500
Material(Contact)	Copper alloy
Surface(Contact)	Silver
CE	Yes
RoHS	Compliant with exemption
China RoHS	Compliant with exemption
Country of Origin	China
European Customs tariff number	85366990

Popis

Veľkosť: A10, Počet kontaktov: 10+PE, Menovitý prúd: 16A, Menovité napätie: 250V
Skrutkovací konektor pre vodiče: 0.75-2.5mm²
Priemyselná zásuvka
Vhodná alternatíva pre Harting Han 10A (09200102812) a Ilme CDA.
