• 10320241200

10320241200

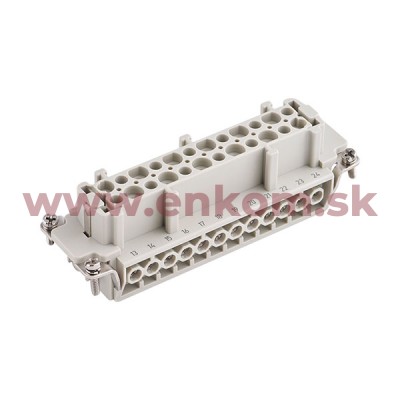

Názov produktu: IE-024-F

Dostupnosť: Skladom 20KS
KS Cena
1 14.61€ / 17.53€ s DPH
KS

Dokumentácia

Icon pdf

Technické informácie

Series IE
Size B24
Nr. Contacts 24+PE
Gender Female
Connection 1 Type Screw - WITH Wire Protector
Rated Current(IEC) 16A
Rated Voltage(IEC) 500V
Rated Impulse Voltage 6kV
Conductor Cross-section 0.75-2.5mm²
Contact Resistance <1mΩ
Insulation Stripping Length 7.5mm
Contact Clamping Screw Size M3
Overvoltage Category III
Pollution Degree 3
Material(insert) Polycarbonate (PC)
Colour(insert) Pebble Grey (RAL 7032)
Material Flammability Class Acc. To UL 94 V-0
Limiting temperature -40…+125°C
Insulation resistance >1010
Insulation Material Group IIIa
Mating Cycles ≥500
Material(Contact) Copper alloy
Surface(Contact) Silver
CE Yes
RoHS Compliant with exemption
China RoHS Compliant with exemption
Country of Origin China
European Customs tariff number 85366990

Popis

Size: B24,Nr. Contacts: 24+PE,Screw - WITH Wire Protector,Rated Current: 16A,Rated Voltage: 500V,0.75-2.5mm_
